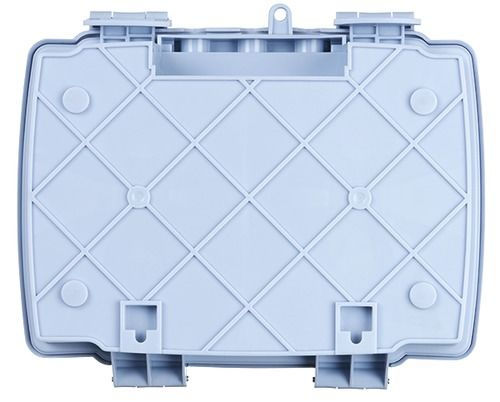

Timeguard Outdoor IP55 Power Enclosure with 2 Gang 13A Socket Strip TPS202

The Timeguard Powerseal TPS202 Outdoor Power Enclosure is a member of the Powerseal range which is manufactured from tough, durable thermoplastic and is intended for use in an outdoor environment or wherever the protection provided by the Powerseal range is required. All products in the range are rated at IP55 or better for protection against water and dust. All Powerseal products must be fitted according to the relevant instructions to maintain their IP rating once installed.
Hinged lid for quick and easy access outdoor power.
Lockable cover facility.
Cable and plug to the 2 way socket strip not included.
Power indicator on socket strip.
Robust polycarbonate housing.
Compact design with support for up to 50mm tall plugs.
Ideal for outdoor power solutions such as pressure washers, lawn mowers, leaf blowers & outdoor lighting setups.

SPECIFICATION
Operating Voltage
230V AC 50Hz (Socket Strip)
Operating Temperature
-20 degree C to +40 degree C
Earth Class
Class I
IP Rating
IP55
Socket Outlet
2 x UK plug sockets 13A (On Socket Strip)
Mounting Hole Centres
180mm (Top/Bottom Set), 100mm (Left/Right Set)
Cable Capacity
3 x 2.5mm2 Cables
Cable Entry
3 x Flex Cable Entries (1 x Supply and 2 x Load)
Body Construction
Polycarbonate (Thermoplastic), (Impact Resistant)
ories (included)
2 Gang Socket Strip, Velcro Pads
Dimensions
Height 205mm, Width 250mm, Depth 114mm

Product Code: TPS202
